Arduino Due Development Board

Arduino Due Development Board

The Arduino Due is the premier high-performance Arduino board based on a 32-bit Arm Cortex-M3 processor. Delivering 84 MHz compute power, 512 KB Flash, 96 KB SRAM, dual true 12-bit DAC outputs, and CAN bus support.

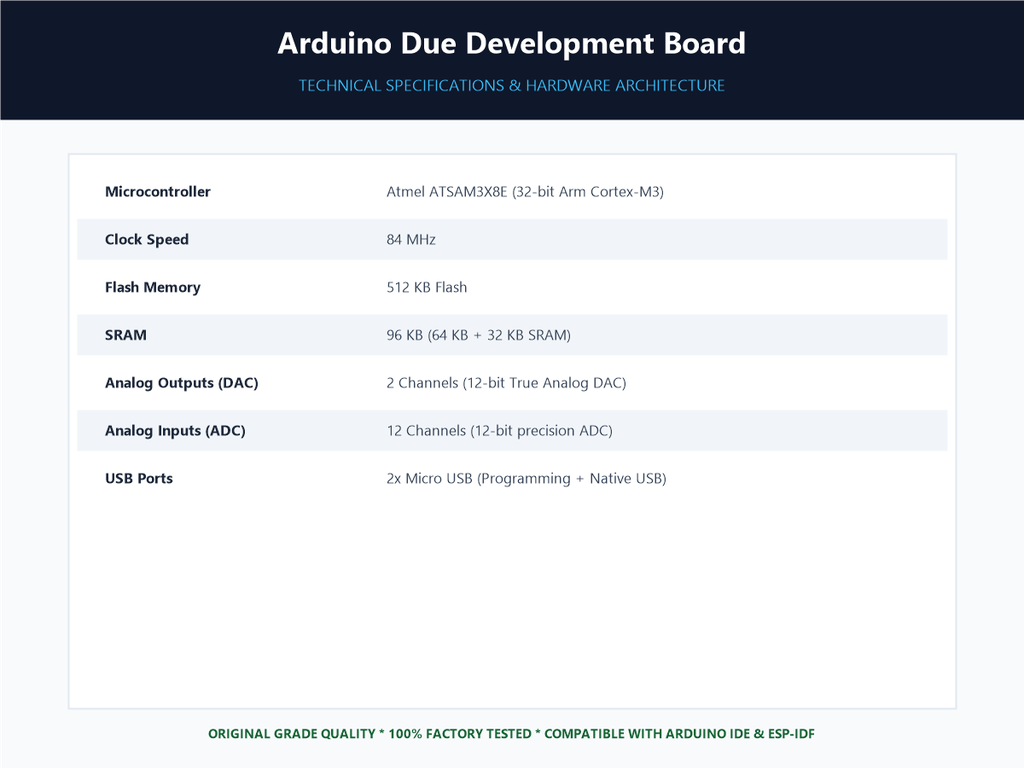

Specifications

• Atmel ATSAM3X8E 32-bit Arm Cortex-M3 CPU @ 84 MHz
• 512 KB Flash memory and 96 KB SRAM (distributed in two banks)
• 54 digital input/output pins (12 provide PWM output)
• 12 analog inputs (12-bit ADC) and 2 true analog outputs (12-bit DAC)
• Dual Micro-USB ports: Dedicated Programming port and Native USB port
• Operating voltage: 3.3V DC (WARNING: NOT 5V tolerant)
