Arduino Nano 33 IoT

Arduino Nano 33 IoT

The Arduino Nano 33 IoT is the easiest entry point to basic IoT and robotics. Combining a 32-bit ARM Cortex-M0+ microcontroller with an onboard u-blox NINA-W102 Wi-Fi and Bluetooth module, Microchip crypto authentication element, and 6-axis IMU.

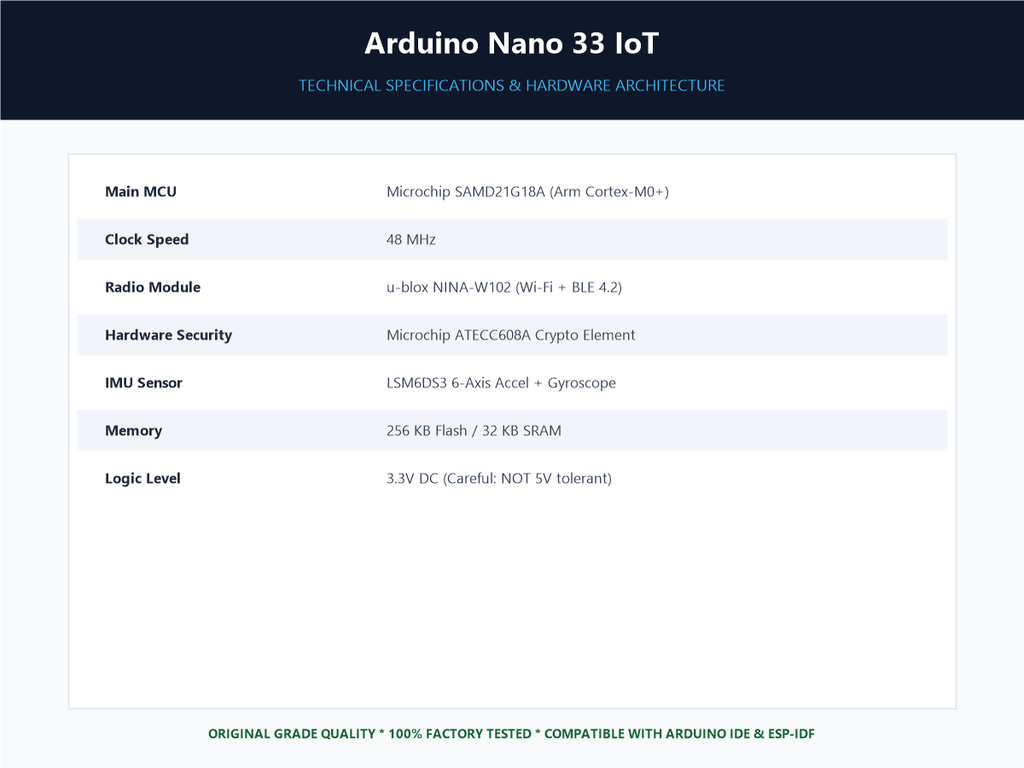

Specifications

• Microchip SAMD21G18A 32-bit Arm Cortex-M0+ @ 48 MHz
• 256 KB Flash memory and 32 KB SRAM
• u-blox NINA-W102 radio module (Wi-Fi 802.11 b/g/n & BLE 4.2)
• ATECC608A secure cryptographic co-processor for encrypted cloud auth
• LSM6DS3 6-axis Inertial Measurement Unit (Accelerometer + Gyroscope)
• 3.3V operating voltage with breadboard-compatible pinout
