Arduino Nano RP2040 Connect

Arduino Nano RP2040 Connect

The Arduino Nano RP2040 Connect brings Raspberry Pi's acclaimed dual-core RP2040 silicon into the Arduino Nano form factor. Enhanced with u-blox Wi-Fi and Bluetooth, a 6-axis IMU, a digital microphone, and a massive 16 MB external Flash.

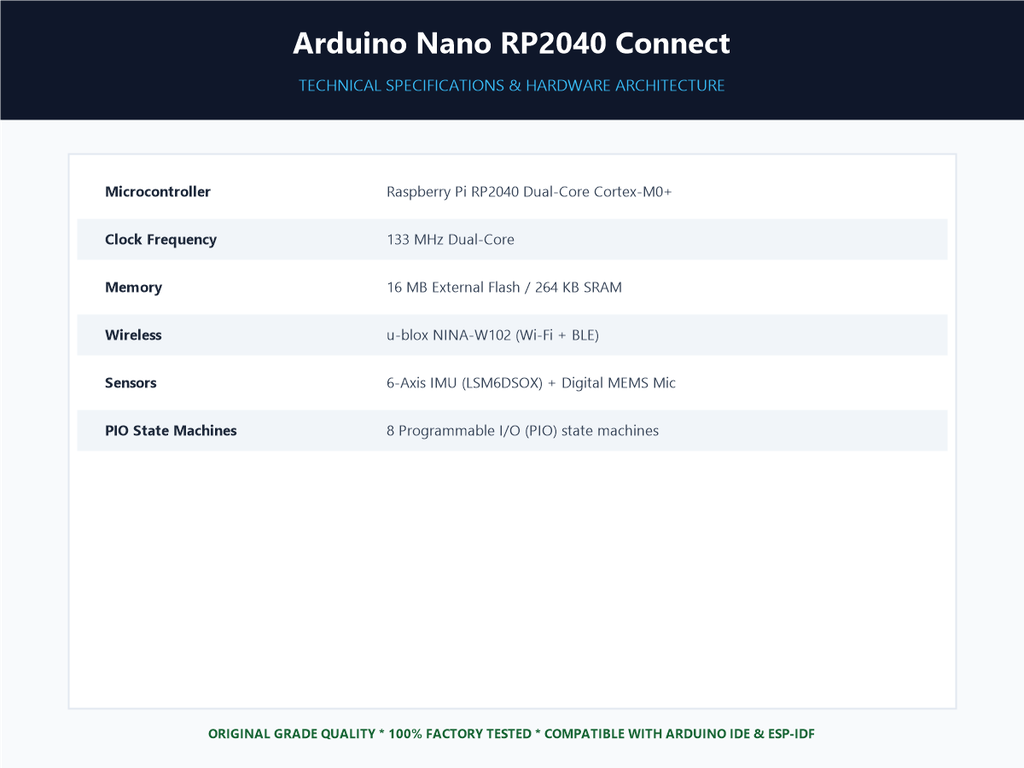

Specifications

• Raspberry Pi RP2040 dual-core 32-bit Arm Cortex-M0+ @ 133 MHz
• 264 KB on-chip SRAM and 16 MB external SPI Flash memory
• u-blox NINA-W102 module with 2.4 GHz Wi-Fi and Bluetooth 4.2 BLE
• LSM6DSOX 6-axis IMU with embedded machine learning core
• MP34DT05 digital MEMS microphone for sound classification
• ATECC608A crypto authentication element for secure cloud communication
