Arduino Portenta H7

Arduino Portenta H7 Industrial Development Board

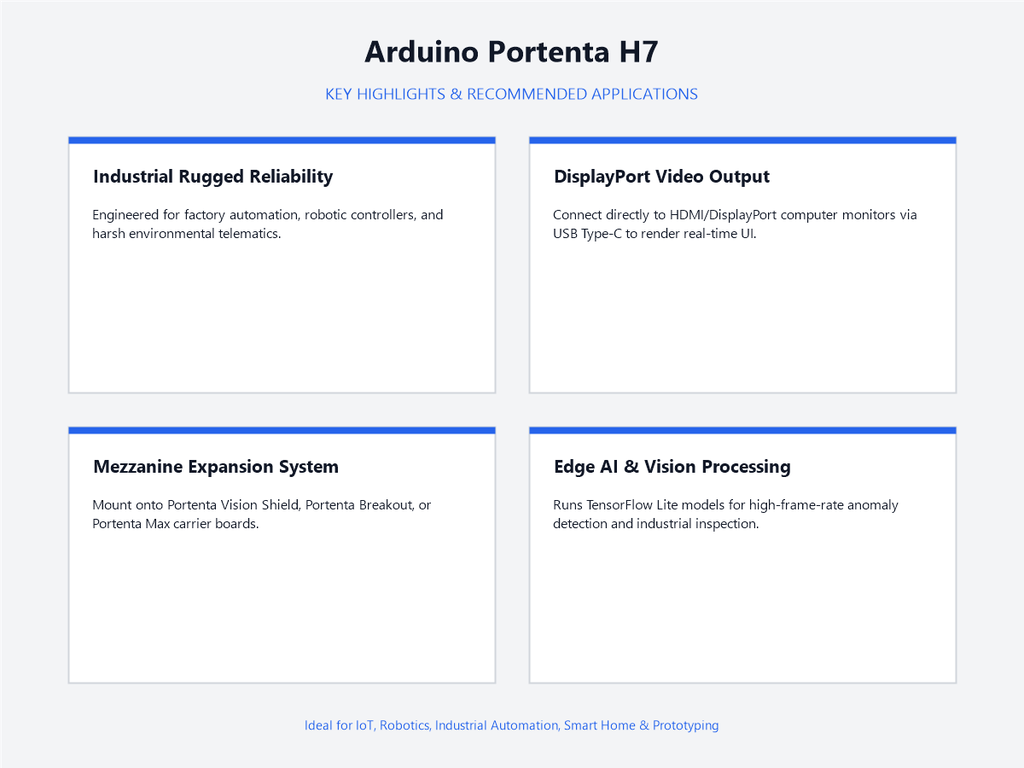

The Arduino Portenta H7 is designed for mission-critical industrial compute, robotics, and edge AI applications. Featuring a dual-core Arm Cortex-M7 @ 480 MHz and Cortex-M4 @ 240 MHz, DisplayPort video output via USB Type-C, and dual 80-pin high-density mezzanine connectors.

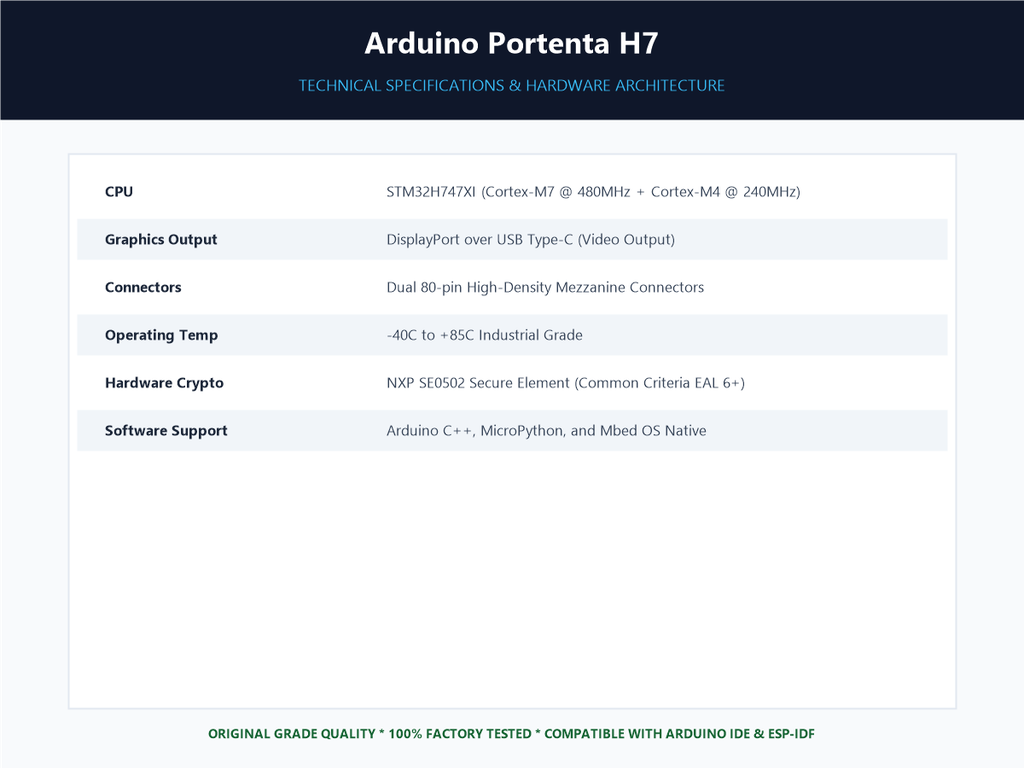

Specifications

• STM32H747XI dual-core Arm processor (Cortex-M7 @ 480 MHz + Cortex-M4 @ 240 MHz)
• Murata 1DX Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 LE
• Dual 80-pin high-density mezzanine connectors breaking out high-speed interfaces
• USB Type-C supporting DisplayPort video output for driving external monitors
• Onboard NXP SE050C2 secure element for industrial hardware crypto
• Operating temperature range: -40C to +85C industrial grade
