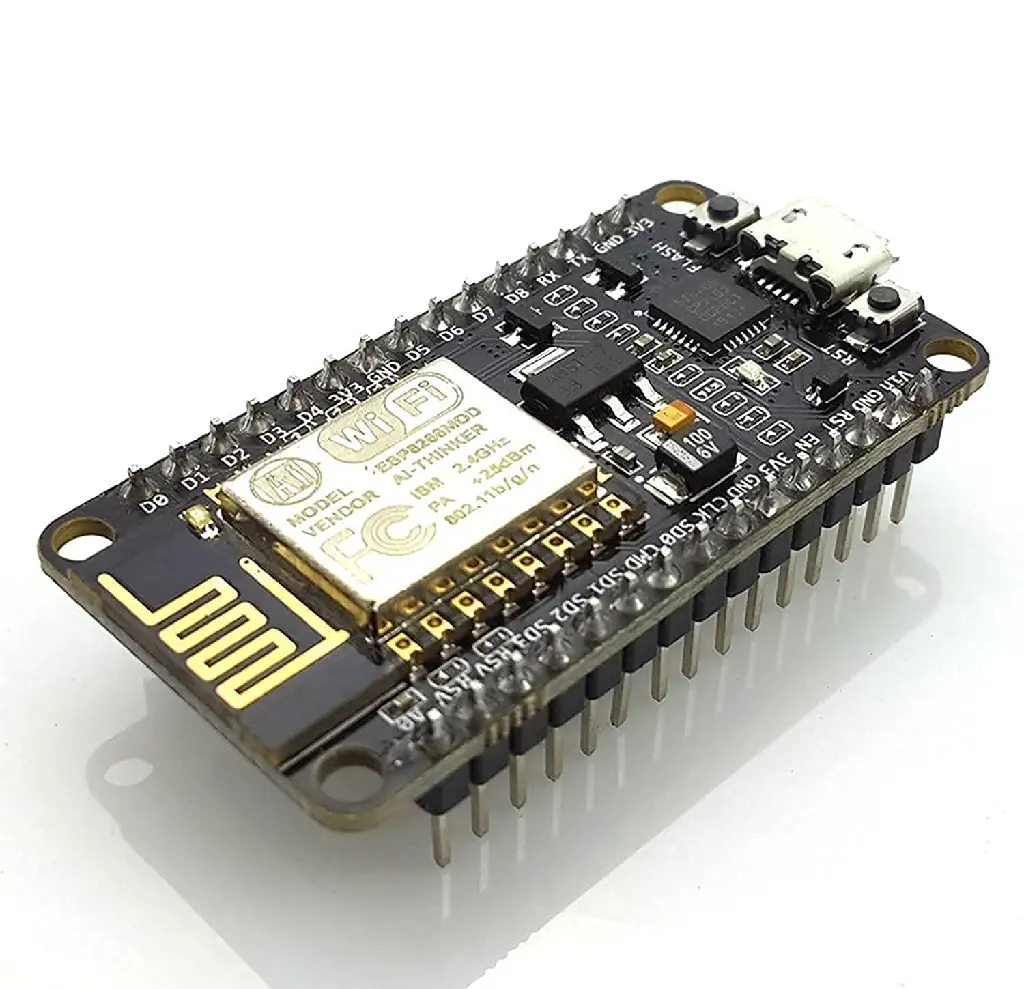

ESP8266 nodemcu 12e microcontroller board

PRODUCT SUMMARY:

The ESP8266 NodeMCU 12E is an open-source, low-cost IoT development board equipped with an integrated Wi-Fi module. Driven by the powerful ESP-12E chip, it bridges the gap between hardware and internet connectivity, making it the industry-standard choice for smart home automation, wireless sensors, and robotics projects. Arduino-compatible and easy to program, it is perfect for hobbyists and professionals alike.

PRODUCT DESCRIPTION:

Take Your IoT Projects Wireless with the NodeMCU 12E

The NodeMCU 12E Development Board is an all-in-one microcontroller platform built around the highly popular ESP8266 system-on-a-chip (SoC). It combines a high-performance 32-bit microcontroller with a fully certified Wi-Fi transceiver. Unlike raw chips, this NodeMCU board features an integrated USB-to-TTL converter and a standard Micro-USB port, allowing you to plug it straight into your computer to upload code instantly.

Key Performance Features:

* Seamless Connectivity: Fully integrated 802.11 b/g/n Wi-Fi with an onboard PCB antenna supports STA, AP, and dual Wi-Fi modes.

* Plug-and-Play USB Interface: Program the board effortlessly using standard software tools via its stable onboard serial controller.

* Arduino & MicroPython Ready: Fully compatible with the Arduino IDE, MicroPython, NodeLUA, and Espruino environments.

* Plentiful I/O Pins: Access 11 GPIO pins, an integrated 10-bit ADC (Analog-to-Digital Converter), PWM channels, SPI, I2C, and UART protocols.

* Breadboard Friendly: Standard 2.54mm (0.1") pin spacing makes prototyping on standard breadboards quick and stress-free.

Technical Specifications:

* Microcontroller: Tensilica 32-bit RISC CPU (running at 80 MHz or 160 MHz)

* Flash Memory: 4 Megabytes (MB)

* Operating Voltage: 3.3V (Onboard 5V-to-3.3V LDO regulator allows safe powering via USB)

* Clock Speed: 80 MHz

* Wi-Fi Security: WPA, WPA2, WEP, and Open access points

* Board Dimensions: Approximately 48mm x 25mm

Ideal Applications & Projects:

* Smart Home Automation (Smart lights, plugs, and switches)

* Remote Weather Stations & Environmental Monitors

* Wireless Web Servers & Data Loggers

* Wi-Fi Controlled Robotics & RC Vehicles

* Real-time IoT Cloud Dashboards (Blynk, Thingspeak, Adafruit IO)

Package Includes:

* 1 x ESP8266 NodeMCU 12E Development Board (Pre-soldered headers)
