Seeed Studio XIAO RP2040 Development Board

Seeed Studio XIAO RP2040 Development Board

Seeed Studio XIAO RP2040 packs Raspberry Pi's high-speed dual-core RP2040 processor into the thumb-sized XIAO form factor. Features 2 MB of onboard Flash, a programmable RGB user LED, dual reset buttons, and a robust USB Type-C connector.

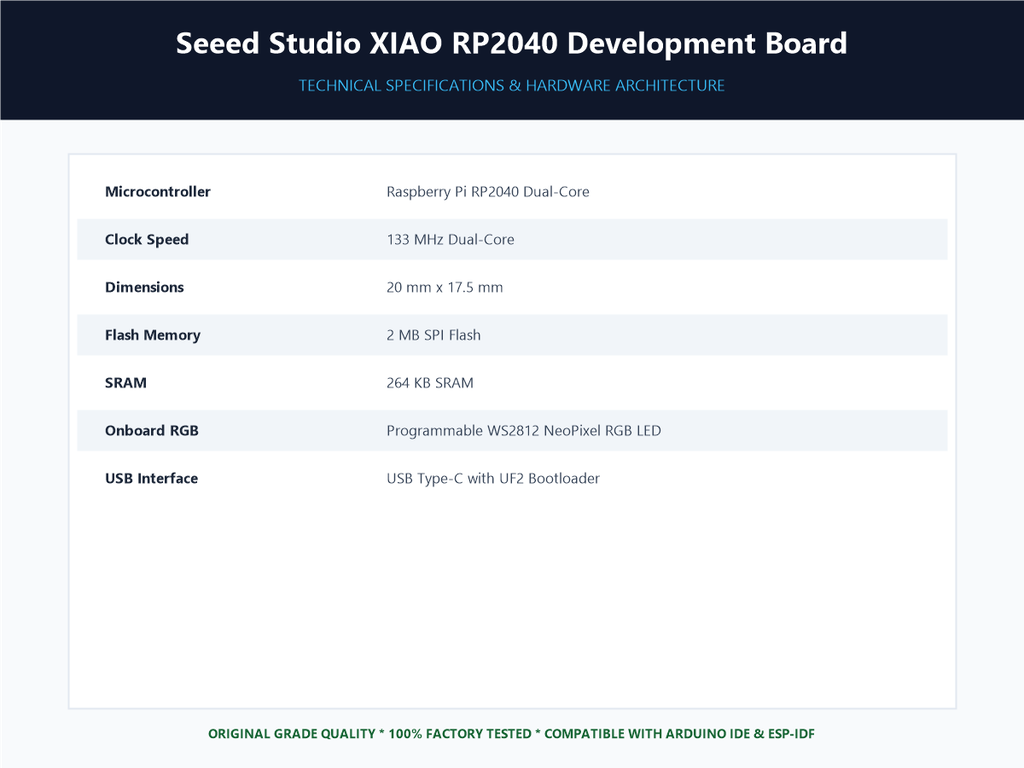

Specifications

• Raspberry Pi RP2040 dual-core 32-bit Arm Cortex-M0+ @ 133 MHz
• 264 KB internal SRAM and 2 MB onboard SPI Flash memory
• 14 GPIO pins (11 digital/analog pins, 1 I2C, 1 UART, 1 SPI)
• Onboard addressable RGB user LED (WS2812 / NeoPixel)
• Ultra-compact dimensions: 20 mm x 17.5 mm with castellated edges
• USB Type-C port with UF2 drag-and-drop bootloader
