STM32 Black Pill STM32F401CEU6 Development Board

STM32 Black Pill STM32F401CEU6 Development Board

The STM32 Black Pill is the formidable upgrade to the classic Blue Pill. Built around the STMicroelectronics STM32F401CEU6 Arm Cortex-M4F with hardware Floating Point Unit (FPU) and DSP instructions, clocked at 84 MHz with modern USB Type-C.

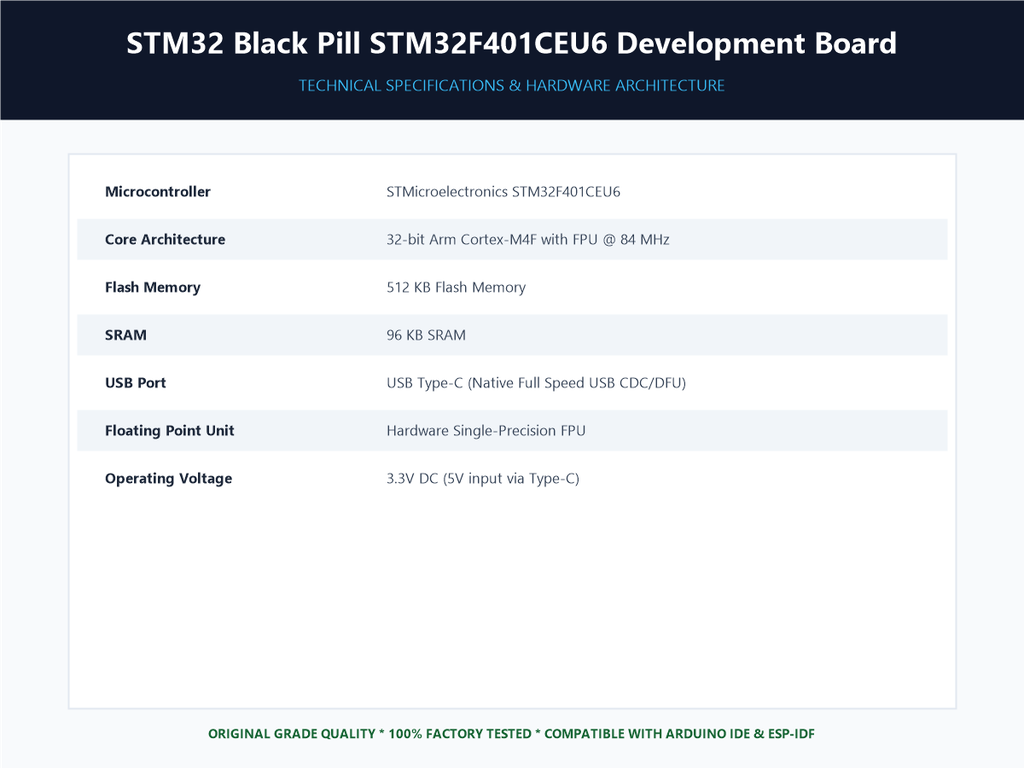

Specifications

• STM32F401CEU6 32-bit Arm Cortex-M4F @ 84 MHz with hardware FPU
• 512 KB Flash memory and 96 KB SRAM
• USB Type-C port supporting native DFU bootloader flashing
• Onboard user button, reset button, and status LED
• 3.3V LDO regulator capable of providing up to 800 mA
• Compatible with Arduino IDE, PlatformIO, and STM32CubeIDE
